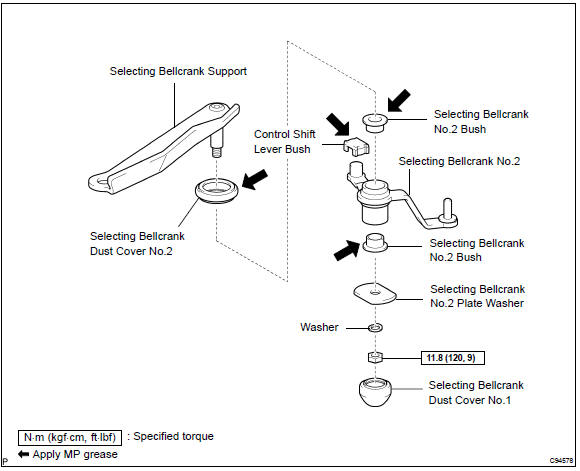

Toyota Corolla Repair Manual: Components
Overhaul
1. Remove control shift lever bush
Remove the control shift lever bush from the selecting
bellcrank assy.
2. Remove selecting bellcrank dust cover no.1
Remove the selecting bellcr ...
