Toyota Corolla (E120): Inspection procedure

1 Inspect shift solenoid valve(s1)

  1. Remove the shift solenoid valve s1.

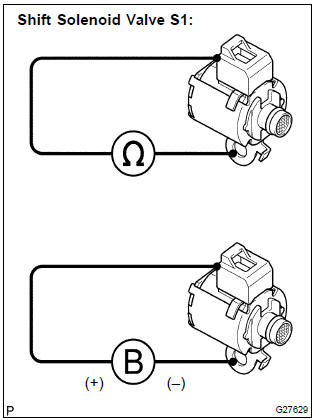

  2. measure the resistance according to the value(s) in the table below.

Standard:

  1. Connect the positive (+) battery lead to the solenoid connector terminal, and the negative (–) battery lead to the solenoid body for checking the solenoid valve operation.

Standard: the solenoid makes an operating noise.

2 Inspect transmission valve body assy(see chapter 2 in the problem

2 Inspect transmission valve body assy(see chapter 2 in the problem symptoms table)

Repair or replace automatic transaxle assy

Repair or replace automatic transaxle assy
