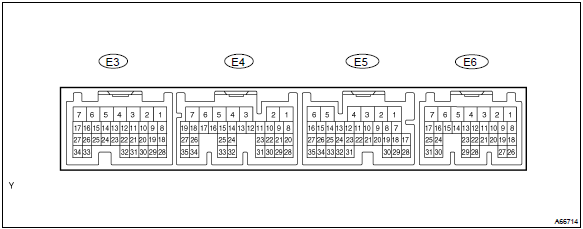

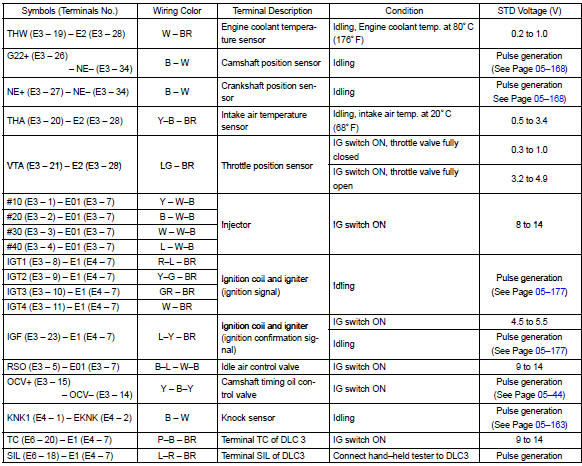

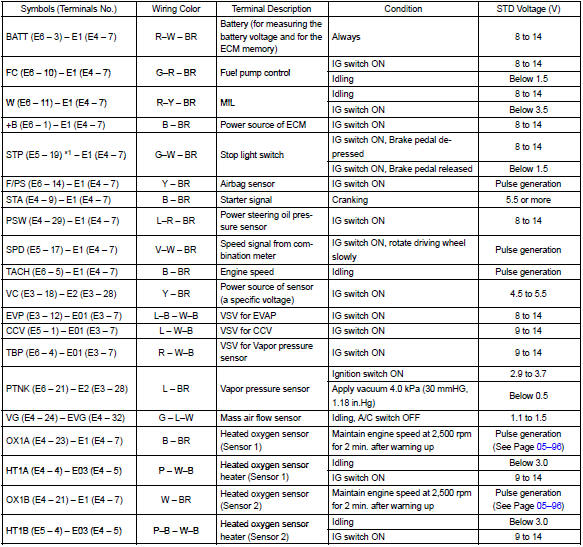

Toyota Corolla Repair Manual: Terminals of ecm
*1: A/t only
Basic inspection
When the malfunction is not confirmed in the dtc check, troubleshooting
should be carried out in all the
possible circuits considered as causes of the problem. In many cases, by
carrying out the ...
Data list/active test
1. Data list
Hint:
using the data list displayed by the hand–held tester or the obd ii scan tool,
you can read the value of
the switches, sensors, actuators and so on without parts removal. Readi ...
