Toyota Corolla Repair Manual: Inspection procedure

1 Check operation(starter)

  1. Check that the starter operates normally and that the engine starts.

2 Input signal check

2 Input signal check

  1. See input signal check on page 05Ц745.

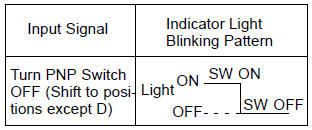

  2.  check the indicator light when shifting into except d position.

    Ok: the indicator light goes off when shifting into except d position.

3 Inspect terminal voltage(d)

3 Inspect terminal voltage(d)

  1. Turn the ignition switch to on.

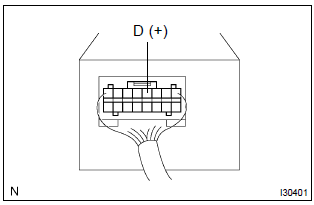

  2.  measure voltage between terminal 4 (d) of cruise control ecu assy connector and body ground when shifting into d position and other positions.

    Ok:

4 Check harness and connector(between cruise control ecu assy

4 Check harness and connector(between cruise control ecu assy and park/neutral position switch)

  1. Check for open and short circuit in harness and connector between cruise control ecu assy and park/ neutral position switch

Check and replace cruise control ecu assy

Check and replace cruise control ecu assy

Circuit description
When the shift position is put in except d position, a signal is sent from the park/neutral position switch to the cruise control ecu assy. When this signal is input during cruise control driving ...
