Toyota Corolla Repair Manual: Components

Differential case assy (c59)

...

Overhaul

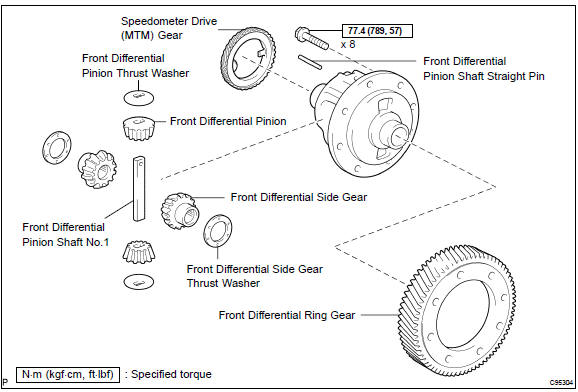

1. Remove speedometer drive (mtm) gear Remove the speedometer drive (mtm) gear from the front differential case. 2. Remove front differential ring gear Place matchmarks on the fro ...
