Toyota Corolla Repair Manual: Circuit description

The door unlock detection switch is built in the door lock motor assembly. This switch is on when the door lock knob is in the unlock position and off when the knob is in the lock position. The ecu detects the door lock knob conditions in this circuit.

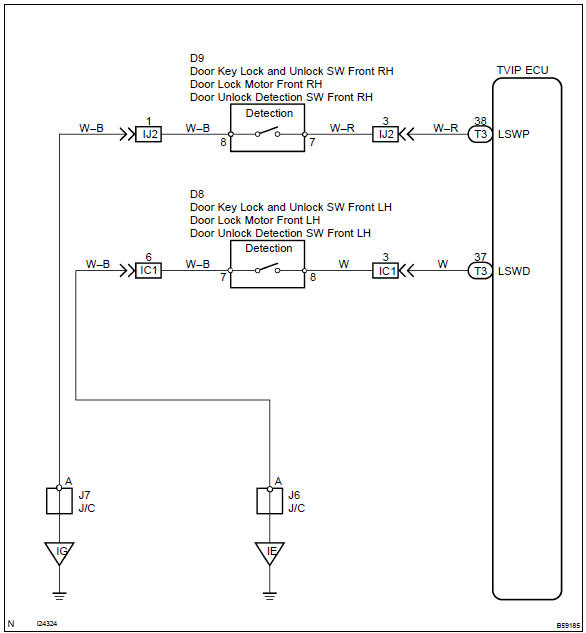

Wiring diagram

Inspection procedure

Door unlock detection switch circuit
...

Inspection procedure
1 Check door lock 2 Check wire harness (tvip ecu door lock) Disconnect the tvip ecu and door lock connectors.  check the continuity between the terminals of the tvip ecu and door ...
