Toyota Corolla Repair Manual: Rear combination lamp assy lh
Replacement
- Using a clipremover, remove the 2 clips and disconnect the luggage compartment trim cover lh.

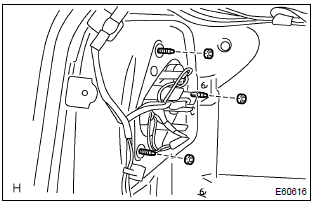

- Disconnect the connector and remove the 3 nuts.

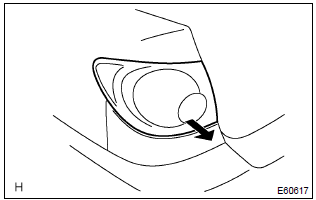

- Pull out the rear combination light assy lh to the back of the vehicle, and remove.
Adjustment
1. Put vehicle these conditions
tire inflation pressure is the specified value .
start the engine.
2. Adjust fog light aim
The fog light aim can be adjusting by moving the ...
License plate lamp assy
Replacement
1. Remove luggage compartment lock cylinder & key set
2. Remove luggage compartment door garnish outside
3. Remove license plate lamp assy
Pull the license plate light assy ...
