Toyota Corolla Repair Manual: Components

Lh headlamp assy

...

Replacement

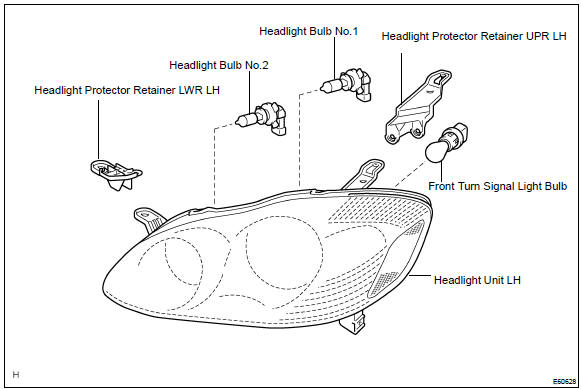

Hint: components: 1. Remove radiator grille sub–assy 2. Remove front bumper cover 3. Remove lh headlamp assy Remove the 3 bolts.  pull out the headlight assy lh forward, then discon ...
