Toyota Corolla (E120): Windshield wiper switch assy

Replacement

1. Remove steering column cover lwr

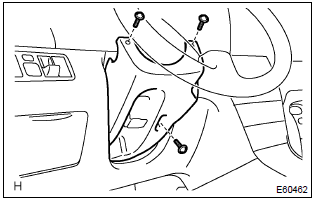

  1. Remove 3 screws and steering column cover lwr.

2. Remove windshield wiper switch assy

  1. Disconnect the connecter of the windshield wiper switch.

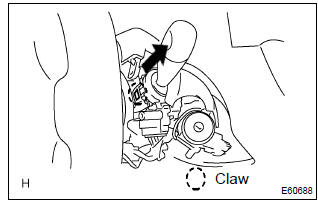

  2.  release the claw and pull out the windshield wiper switch assy as shown in the illustration.

Notice

: pressing the claw hard breaks the claw.
