Toyota Corolla (E120): Washer nozzle
Adjustment
1. Inspect washer nozzle

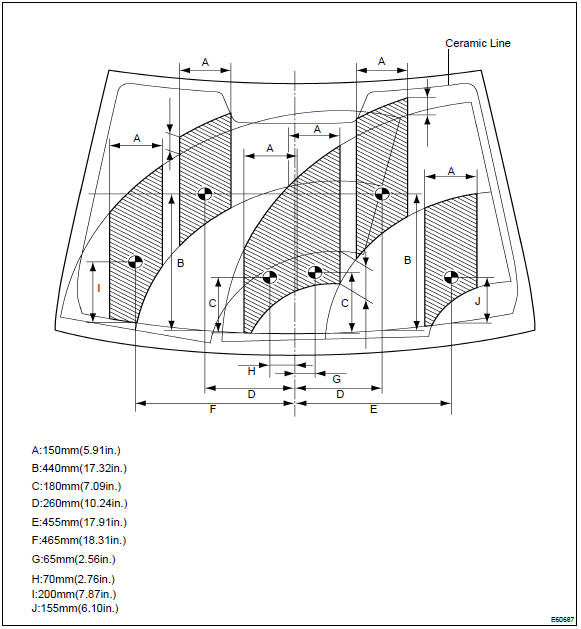

- with the engine running, check that the point where the washer fluid hits the windshield and the rear window is within the range indicated by the hatched line.
