Toyota Corolla Repair Manual: Terminals of ecu
1. Inspect tvip ecu
- Inspect the ecu–b, dome and ecu–ig fuses.

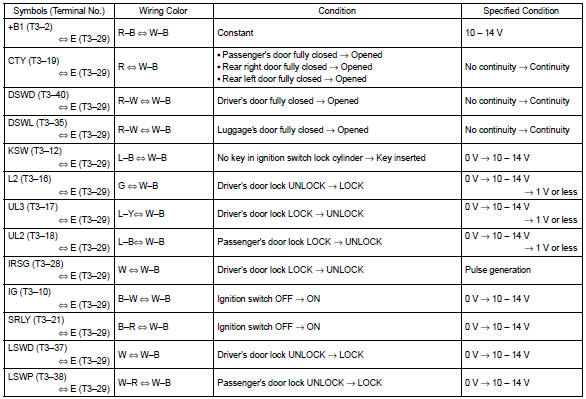

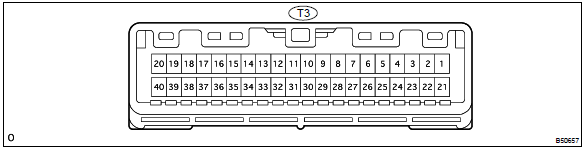

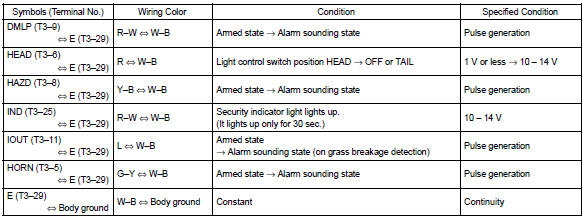

- disconnect the tvip ecu connector, and the continuity and voltage of check each terminal of the disconnected connector.
Standard:
If the result is not as specified, the vehicle’s side may malfunction.
- Reconnect the tvip ecu connector, and the continuity and voltage of check each terminal of the disconnected connector.
Standard:
If the result is not as specified, the tvip ecu may malfunction.

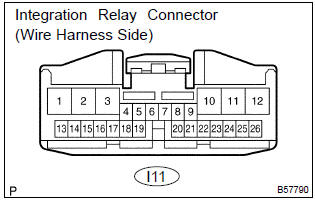

2. Inspect integration relay
- Disconnect the connector and check the continuity of each terminal of the disconnected connector.
If the result is not as specified, the vehicle’s side may malfunction.

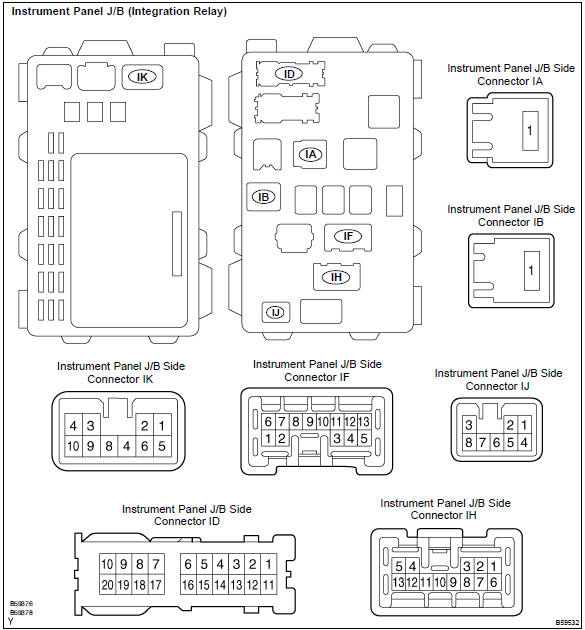

3. Inspect instrument panel j/b (integration relay)
- Inspect the door fuse.

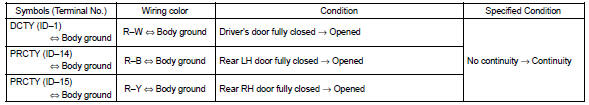

- disconnect the id connector of the instrument panel j/b, and check the continuity of each terminal of the disconnected connectors.
Standard:
If the result is not as specified, the vehicle’s side may malfunction.
How to proceed with troubleshooting
Troubleshoot in accordance with the procedure on the following pages.
1 Vehicle brought to workshop
2 Customer problem analysis check and symptom check
Without applicable symptoms, proceed to ...
Problem symptoms table
Proceed to the reference page shown in the table below for each malfunction
symptom and troubleshoot
each circuit.
Hint:
troubleshooting of the tvip system is based on the premise that the door ...
