Toyota Corolla (E120) 2002–2008 Repair Manual / Service specifications / Standard bolt
Toyota Corolla (E120): Standard bolt

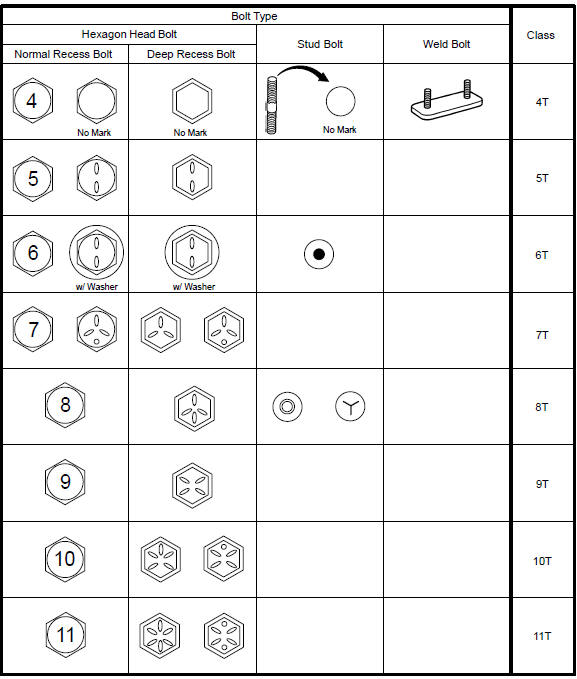

How to determine bolt strength

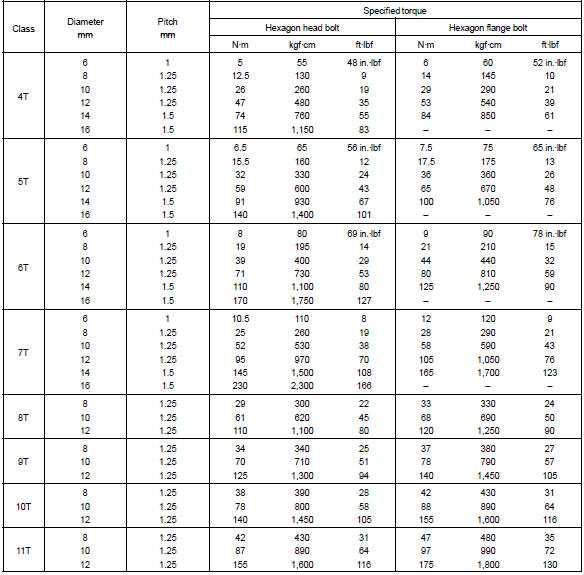

Specified torque for standard bolts

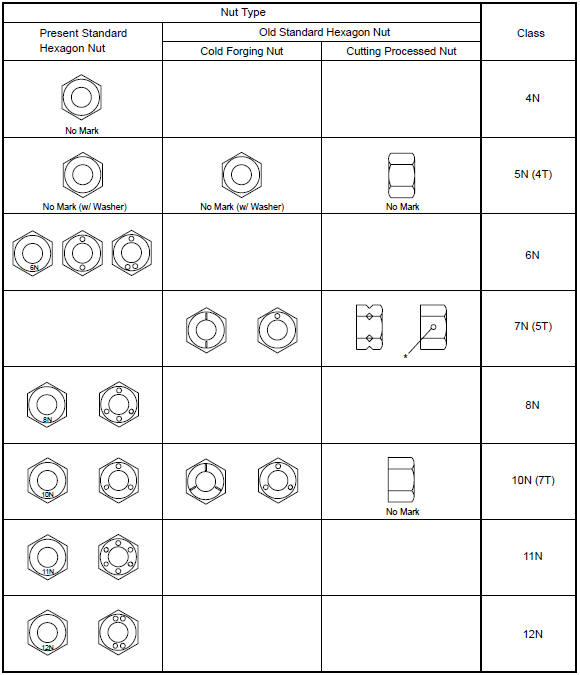

How to determine nut strength
*: Nut with 1 or more marks on one side surface of the nut.
Hint
: use the nut with the same number of the nut strength classification or the greater than the bolt strength classification number when tightening parts with a bolt and nut.
Example: bolt = 4t
nut = 4n or more
