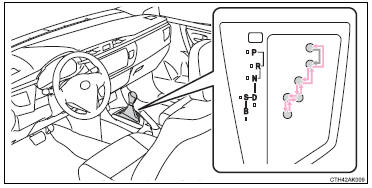

Toyota Corolla (E170): Shifting the shift lever
Vehicles without a smart key system:
While the engine switch is in the “ON” position, depress the brake pedal and move the shift lever.
Vehicles with a smart key system: While the engine switch is in IGNITION ON mode, depress the brake pedal and move the shift lever.
When shifting the shift lever between P and D, make sure that the vehicle is completely stopped.
Other materials:
Check short circuit
If the wire harness is ground shorted as shown in fig. 5,
Locate the section by conducting a resistance check with
the body ground in step (b).
Check the resistance with the body ground.
Disconnect connectors a and c and measure the
resistance between terminals 1 and 2 ...
Using the interior lights
Interior lights list
1 Front interior light/personal lights
2 Rear interior light
3 Engine switch light (vehicles with a smart key system)
Front interior light/personal lights
■ Front interior light
► Type A
► Type B
1 Off
2 Door position
3 On
■ Personal li ...
Circuit description
The ignition switch provides circuit power and the ecm provides the circuit
ground that illuminates the mil.
Mil operation is checked visually:
it should be illuminated when the ignition is first turned on. If the mil is off
all of the time or on all of the time,
use the procedure below to ...
