Hint
: installation is according to the reverse order of the removal.
1. Remove fr wiper arm rh
2. Remove fr wiper arm lh
3. Remove hood to cowl top seal
4. Remove cowl top ventilator louver lh
5. Remove cowl top ventilator louver rh
6. Remove front door weatherstrip rh
7. Remove front door weatherstrip lh
8. Remove front pillar garnish rh
9. Remove front pillar garnish lh
10. Remove inner rear view mirror assy
11. Remove rh visor assy
12. Remove lh visor assy
13. Remove glove box lamp assy
14. Remove assist grip sub–assy
15. Remove visor holder
16. Remove roof headlining assy
17. Remove roof drip side finish moulding center rh
18. Remove roof drip side finish moulding center lh
19. Remove windshield moulding outside
Notice
: do not damage the body with the knife.

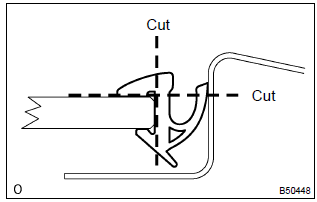

Hint
: when removing, make a cut partly, pull and remove it by hand.

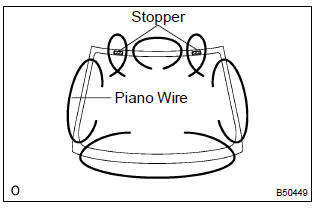

20. Remove windshield glass
Hint

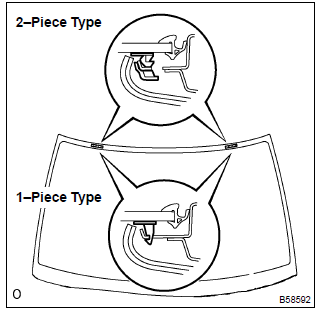

: depending on a vehicle type, either a 1–piece type or a 2–piece type of stopper is installed.
Hint
: apply protective tape to the outer surface to keep the surface from being scratched.
Notice
:
Notice

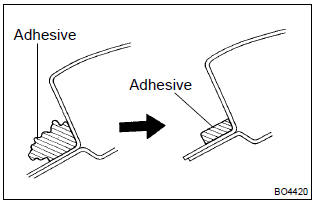

: leave as much adhesive on the body as possible when cutting off the glass.
21. Clean windshield glass
Notice
:

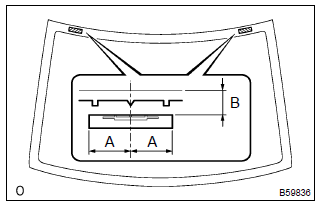

22. Install windshield glass stopper no.1
23. Install windshield glass stopper no.2
Notice
:
A: 40.0 Mm (1.575 In.)
B: 7.7 Mm (0.303 In.)

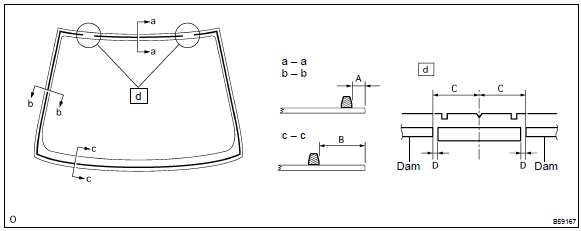

24. Install front pillar outer dam
Notice
:
Notice
:
do not touch the glass face after cleaning it.
A: 7 mm (0.28 In.)
B: 22.5 Mm (0.886 In.)
C: 45 mm (1.77 In.)
D: 5 mm (0.20 In.)
25. Install windshield glass
Hint
: leave as much adhesive on the body as possible.
Notice
: check that the stoppers are attached to the body correctly.
Hint
: when reusing the glass, check and correct the reference mark’s positions.
Notice
:
Notice
:
Part no. 08850–00801 Or equivalent
Hint

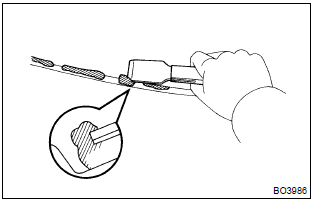

: after cutting off the tip, use all adhesive within the time described in the table below.

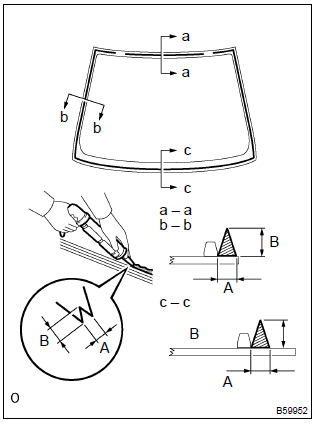

A: 8.0 Mm (0.315 In.) Or more b: 12.5 Mm (0.492 In.) Or more
Notice
:
Hint
: apply adhesive on the glass rim.
26. Install windshield moulding outside
Notice
: take care not to drive the vehicle during the time described in the table below.
27. Inspect for leak and repair
