Toyota Corolla (E120): Replacement

1. Remove radiator grille sub–assy

2. Remove front bumper cover

3. Remove fog lamp assy lh

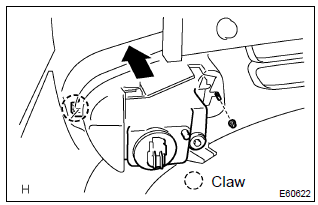

  1. Remove a nut and release a claw.
  2.  remove the fog light assy lh.

4. Put vehicle these conditions

5. Adjust fog light aim

6. Check fog light aim
