Toyota Corolla (E120): Replacement

Hint

: components:

1. Precaution

2. Disconnect battery negative terminal

3. Remove instrument panel sub–assy lower

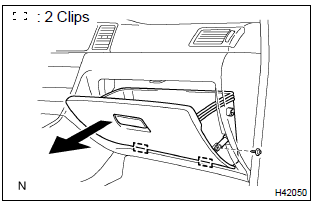

  1. Remove the screw from the glove compartment door stopper sub–assy.
  2.  pull the instrument panel sub–assy lower to remove it.

4. Separate passenger airbag connector

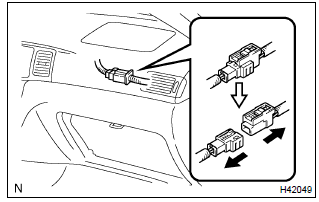

  1. Separate the instrument panel passenger airbag assy connector.

5. Remove instrument panel passenger air bag assy

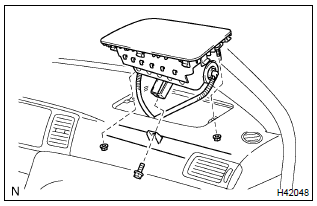

  1. Remove the bolt.
  2.  remove the 2 nuts and instrument panel passenger airbag assy.

6. Install instrument panel passenger air bag assy

Torque:
bolt: 20 nvm (204 kgfvcm, 15 ftvlbf)

7. Inspect instrument panel passenger air bag assy

8. Inspect srs warning light
