Toyota Corolla (E120): Replacement

1. Remove proportioning valve assy

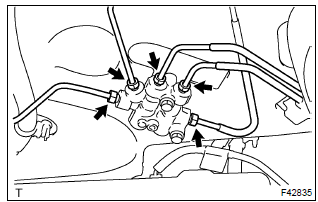

  1. Using sst, disconnect the 5 brake tubes from the proportioning valve assy.

    Sst 09023–00100

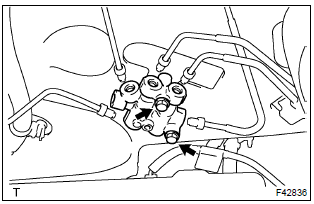

  1. Remove the 2 bolts and proportioning valve assy from the body.

2. Install proportioning valve assy

  1. Install the proportioning valve assy with the 2 bolts.

    Torque: 5.4 Nvm (55 Kgf·cm, 48 invlbf)

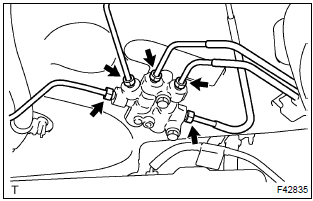

  1. Using sst, connect the 5 brake tubes to the proportioning valve assy.

    Sst 09023–00100
    torque: 15.2 Nvm (155 Kgf·cm, 11 ft·lbf)

3. Fill reservoir with brake fluid

4. Bleed master cylinder

 sst 09023–00100

5. Bleed brake line

6. Check fluid level in reservoir
