Toyota Corolla (E120): Replacement

1. Disconnect battery negative terminal

2. Remove engine under cover rh

3. Remove starter assy

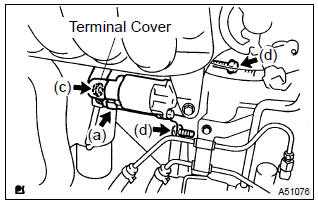

  1. Disconnect the starter connector.
  2.  open the terminal cover.
  3. remove the nut, then disconnect the starter wire.
  4.  remove the 2 bolts, then remove the starter.

4. Install starter assy

Torque:
37 nvm (378 Kgf·cm, 27 ft·lbf) for bolt 9.8 Nvm (100 Kgf·cm, 7 ft·lbf) for nut

5. Install engine under cover rh

6. Connect battery negative terminal

torque: 5.4 Nvm (55 Kgf·cm, 48 in.Vlbf)
