Toyota Corolla (E120): Power steering

Preparation

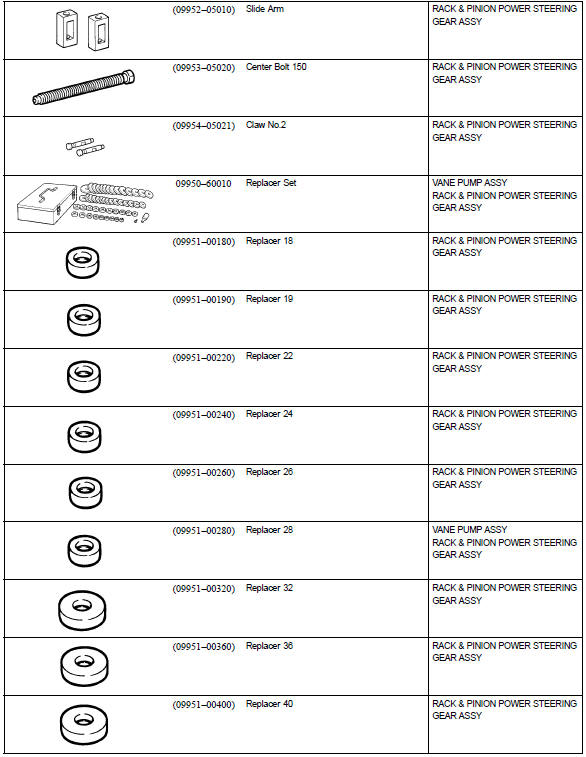

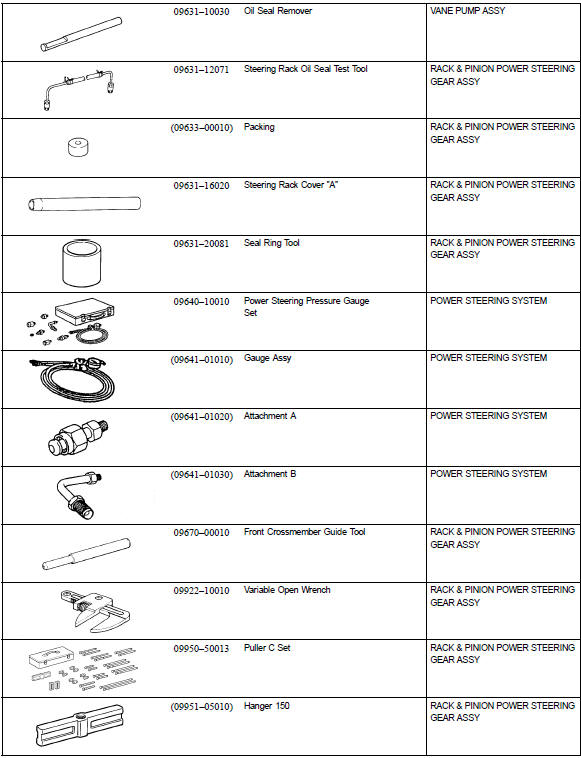

Sst

Recomended tools

Recomended tools

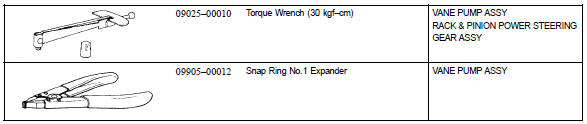

Equipment

Equipment

Lubricant

Lubricant

Ssm

Ssm

Heater & air conditioner

    Share this page:

    Other materials:

    How to proceed with troubleshooting
    The hand–held tester can be used at step 3, 4, 6, 9. 1 Vehicle brought to workshop 2 Customer problem analysis 3 Connect the obd ii scan tool or hand–held tester to dlc3 4 Check and clear dtc and freeze frame data 5 Visual inspection 6 Setting the check mode diagnosis 7 Proble ...

    Circuit description
    The actuator motor is operated by signals from the cruise control ecu assy. Acceleration and deceleration signals are transmitted by changes in the duty ratio (see below). Duty ratio: the duty ratio is the ratio of the period of continuity in one cycle. For example, if a is the period of co ...

    Diagnostic trouble code chart
    Notice: when removing the part, turn the ignition switch to off. Hint: using sst 09843–18040, it connect the terminal tc and cg of dlc3. If any abnormality is not found when inspecting parts, inspect the ecu and ground points for poor contact. If a malfunction code is displayed during ...
