Toyota Corolla Repair Manual: Malfunction in water temperature receiver gauge

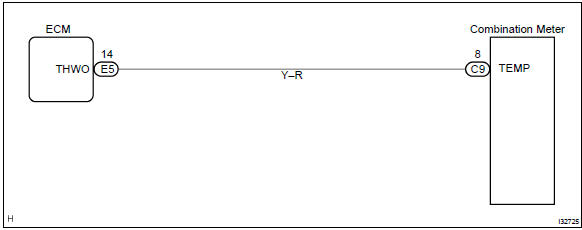

Wiring diagram
Inspection procedure
1 Read value of hand–held tester
- Check output value of ecm.
- Connect the hand–held tester to dlc3.
- Turn the ignition switch to on and push the hand–held tester main switch on.
- Select the data list mode on the hand–held tester.
2 Inspect combination meter assy
(Reference) inspection using oscilloscope
- check the input signal waveform.

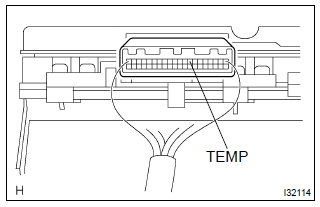

- Remove the combination meter with connectors still connected.
- Connect the oscilloscope to the terminals c9–8 of combination meter assy and body ground.
- Start engine.

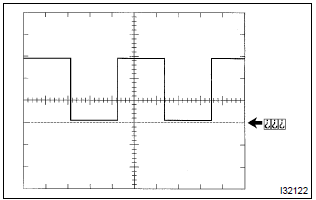

- Check the signal waveform.
3 Check harness and connector(between ecm and combination meter assy)
- Remove the combination meter.
- check the continuity between terminals 14 (thwo) of ecm and c9–8 of
combination meter connector.
Standard: there is continuity.
Check and replace ecm
Malfunction in fuel receiver gauge
Wiring diagram
Inspection procedere
1 Inspect fuel sender gage assy
Disconnect the connector fuel sender gauge.
check the float position between e and f and measure
the resistance betw ...
Warning buzzer does not sound (key reminder
warning, light reminder warning)
Wiring diagram
Inspection procedere
1 Check buzzer
Check that all of the warning buzzers sound.
2 Inspect front door courtesy lamp switch assy
3 Inspect un–lock warning switch ...
