Toyota Corolla Repair Manual: Inspection procedure

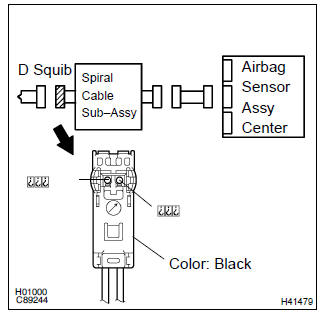

1 Check d squib circuit(airbag sensor assy center horn button assy)

  1. Disconnect the negative () terminal cable from the battery, and wait at least for 90 seconds.
  2.  disconnect the connector between the airbag sensor assy center and the horn button assy.
  3.  for the black connector (on the spiral cable subassy side) between the horn button assy and the spiral cable subassy, measure the resistance between d2+ and body ground.

    Ok: resistance: 1 mw or higher

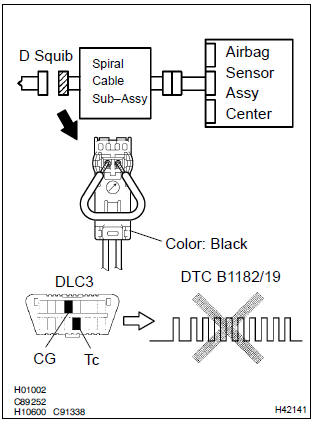

2 Check air bag sensor assy center

2 Check air bag sensor assy center

Sst 0984318040

  1. Connect the connector to the airbag sensor assy center.
  2.  using a service wire, connect d2+ and d2 of the black connector (on the spiral cable subassy side) between the horn button assy and the spiral cable subassy.
  3.  connect the negative () terminal cable to the battery, and wait at least for 2 seconds.
  4.  turn the ignition switch to on, and wait t least for 20 seconds.
  5.  clear the dtc stored in memory .
  6.  turn the ignition switch to lock, and wait at least for 20 seconds.
  7.  turn the ignition switch to on, and wait at least for 20 seconds.
  8.  check the dtc .

    Ok: dtc b1182/19 is not output.

Hint

: codes other than code b1182/19 may be output at this time, but they are not relevant to this check.

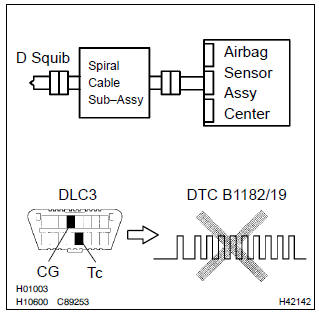

3 Check d squib

3 Check d squib

Sst 0984318040

  1. Turn the ignition switch to lock.
  2.  disconnect the negative () terminal cable from the battery, and wait at least for 90 seconds.
  3.  connect the horn button assy connectors.
  4.  connect the negative () terminal cable to the battery, and wait at least for 2 seconds.
  5.  turn the ignition switch to on, and wait at least for 20 seconds.
  6.  clear the dtc stored in memory .
  7.  turn the ignition switch to lock, and wait at least for 20 seconds.
  8.  turn the ignition switch to on, and wait at least for 20 seconds.
  9.  check the dtc .

    Ok: dtc b1182/19 is not output.

Hint

: codes other than code b1182/19 may be output at this time, but they are not relevant to this check.

4 Use simulation method to check

4 Use simulation method to check

Replace all srs components including the wire harness

Replace all srs components including the wire harness

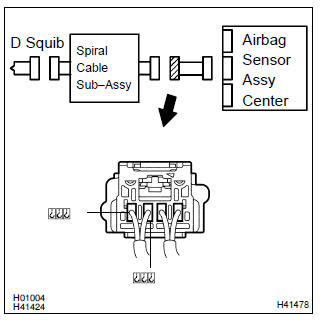

5 Check instrument panel wire(airbag sensor assy center spiral cable subassy)

  1. Disconnect the connector of the instrument panel wire.
  2.  for the connector (on the spiral cable subassy side) between the airbag sensor assy center and the spiral cable subassy, measure the resistance between d2+ and body ground.

    Ok: resistance: 1 mΩ or higher

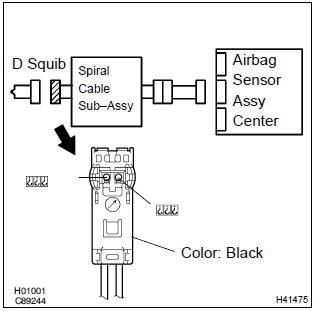

6 Check spiral cable subassy

6 Check spiral cable subassy

  1. For the black connector (on the spiral cable subassy side) between the horn button assy and the spiral cable subassy, measure the resistance between d2+ and body ground.

    Ok: resistance: 1 mΩ or higher

7 Use simulation method to check

7 Use simulation method to check

Replace all srs components including the wire harness

Replace all srs components including the wire harness

Circuit description
The d squib (2nd step) circuit consists of the airbag sensor assy center, spiral cable subassy and horn button assy. It causes the srs to deploy when the srs deployment conditions are satisfied ...

Short in d squib (2nd step) circuit (to b+)
Dtc b1183/22 short in d squib (2nd step) circuit (to b+) ...
