Toyota Corolla Repair Manual: Inspection procedure

1 Check p/t squib(lh) circuit(airbag sensor assy center front seat outer belt assy lh)

  1. Disconnect the negative () terminal cable from the battery, and wait at least for 90 seconds.
  2.  disconnect the connectors between the airbag sensor assy center and the seat belt pretensioner (lh).

    Hint

    : make sure that the connector is not damaged (the lock button is not disengaged, or the claw of the lock is not deformed or damaged). If the damage is found, replace the wire harness.

  3. release the airbag activation prevention mechanism of the connector (on the airbag sensor assy center side) between the airbag sensor assy center and the seat belt pretensioner (lh) .

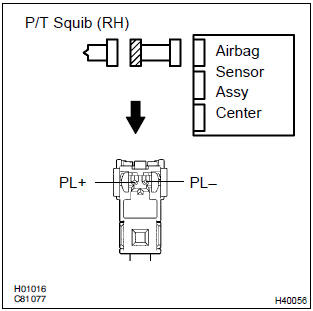

  4.  for the connector (on the seat belt pretensioner side) between the airbag sensor assy center and the seat belt pretensioner (lh), measure the resistance between pl+ and pl.

    Ok: resistance: 1 mw or higher

2 Check air bag sensor assy center

2 Check air bag sensor assy center

Sst 0984318040

  1. Connect the connector to the airbag sensor assy center.
  2.  connect the negative () terminal cable to the battery, and wait at least for 2 seconds.
  3.  turn the ignition switch to on, and wait at least for 20 seconds.
  4.  clear the dtc stored in memory .
  5.  turn the ignition switch to lock, and wait at least for 20 seconds.
  6.  turn the ignition switch to on, and wait at least for 20 seconds.
  7.  check the dtc .

    Ok: dtc b0135/73 is not output.

Hint

: codes other than code b0135/73 may be output at this time, but they are not relevant to this check.

3 Check p/t squib (lh)

3 Check p/t squib (lh)

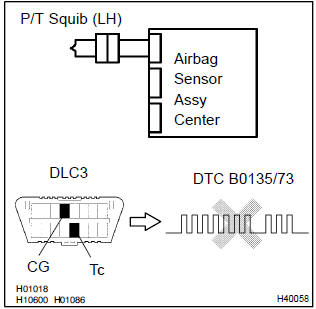

Sst 0984318040

  1. Turn the ignition switch to lock.
  2.  disconnect the negative () terminal cable from the battery, and wait at least for 90 seconds.
  3.  connect the seat belt pretensioner (lh) connector.
  4.  connect the negative () terminal cable to the battery, and wait at least for 2 seconds.
  5.  turn the ignition switch to on, and wait at least for 20 seconds.
  6.  clear the dtc stored in memory .
  7.  turn the ignition switch to lock, and wait at least for 20 seconds.
  8.  turn the ignition switch to on, and wait at least for 20 seconds.
  9.  check the dtc .

    Ok: dtc b0135/73 is not output.

Hint

: codes other than code b0135/73 may be output at this time, but they are not relevant to this check.

Use simulation method to check

Use simulation method to check

Circuit description
The p/t squib (lh) circuit consists of the airbag sensor assy center and seat belt pretensioner (lh). It causes the srs to deploy when the srs deployment conditions are satisfied. Dtc b0135/73 ...

Open in p/t squib (lh) circuit
Dtc b0136/74 open in p/t squib (lh) circuit ...
