Toyota Corolla Repair Manual: Inspection procedure

1 Check side squib(lh) circuit(airbag sensor assy center front seat airbag assy lh)

  1. Disconnect the negative () terminal cable from the battery, and wait at least for 90 seconds.
  2.  disconnect the connectors between the airbag sensor assy center and the front seat airbag assy (lh).
  3.  connect the negative () terminal cable to the battery, and wait at least for 2 seconds.
  4.  turn the ignition switch to on.
  5.  for the connector (on the front seat airbag assy side) between the airbag sensor assy center and the front seat airbag assy (lh), measure the voltage between sfl+ and body ground.

    Ok: voltage: below 1 v

2 Check air bag sensor assy center

2 Check air bag sensor assy center

Sst 0984318040

  1. Turn the ignition switch to lock.
  2.  disconnect the negative () terminal cable from the battery, and wait at least for 90 seconds.
  3.  connect the connector to the airbag sensor assy center.

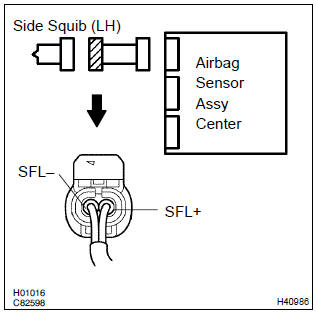

  4.  using a service wire, connect sfl+ and sfl of the connector (on the front seat airbag assy side) between the airbag sensor assy center and the front seat airbag assy (lh).
  5.  connect the negative () terminal cable to the battery, and wait at least for 2 seconds.
  6.  turn the ignition switch to on, and wait at least for 20 seconds.
  7.  clear the dtc stored in memory .
  8.  turn the ignition switch to lock, and wait at least for 20 seconds.
  9.  turn the ignition switch to on, and wait at least for 20 seconds.
  10.  check the dtc .

    Ok: dtc b0118/46 is not output.

Hint

: codes other than code b0118/46 may be output at this time, but they are not relevant to this check.

3 Check side squib(lh)

3 Check side squib(lh)

Sst 0984318040

  1. Turn the ignition switch to lock.
  2.  disconnect the negative () terminal cable from the battery, and wait at least for 90 seconds.
  3.  connect the front seat airbag assy (lh) connector.
  4.  connect the negative () terminal cable to the battery, and wait at least for 2 seconds.
  5.  turn the ignition switch to on, and wait at least for 20 seconds.
  6.  clear the dtc stored in memory .
  7. turn the ignition switch to lock, and wait at least for 20 seconds.
  8.  turn the ignition switch to on, and wait at least for 20 seconds.
  9.  check the dtc .

    Ok: dtc b0118/46 is not output.

Hint

: codes other than code b0118/46 may be output at this time, but they are not relevant to this check.

4 Use simulation method to check

4 Use simulation method to check

Replace all srs components including the wire harness

Replace all srs components including the wire harness

Circuit description
The side squib (lh) circuit consists of the airbag sensor assy center and front seat airbag assy (lh). It causes the srs to deploy when the srs deployment conditions are satisfied. Dtc b0118/4 ...
