Toyota Corolla Repair Manual: Inspection procedure

1 Check p squib circuit(airbag sensor assy center instrument panel passenger airbag assy)

  1. Disconnect the negative () terminal cable from the battery, and wait at least for 90 seconds.

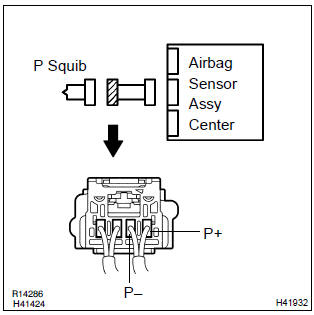

  2.  disconnect the connectors between the airbag sensor assy center and the instrument panel passenger airbag assy.
  3.  for the connector (on the instrument panel passenger airbag assy side) between the airbag sensor assy center and the instrument panel passenger airbag assy, measure the resistance between p+ and body ground.

    Ok: resistance: 1 mΩ or higher

2 Check air bag sensor assy center

2 Check air bag sensor assy center

Sst 0984318040

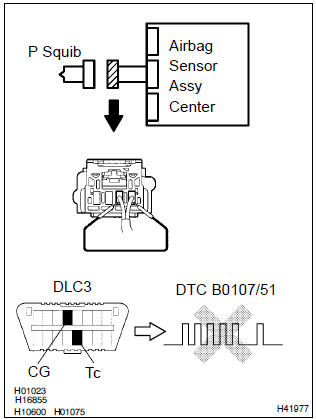

  1. Connect the connector to the airbag sensor assy center.
  2.  using a service wire, connect p+ and p of the connector (on the instrument panel passenger airbag assy side) between the airbag sensor assy center and the instrument panel passenger airbag assy.
  3.  connect the negative () terminal cable to the battery, and wait at least for 2 seconds.
  4.  turn the ignition switch to on, and wait at least for 20 seconds.
  5.  clear the dtc stored in memory .
  6.  turn the ignition switch to lock, and wait at least for 20 seconds.
  7.  turn the ignition switch to on, and wait at least for 20 seconds.
  8.  check the dtc .

    Ok: dtc b0107/51 is not output.

Hint

: codes other than code b0107/51 may be output at this time, but they are not relevant to this check.

3 Check p squib

3 Check p squib

Sst 0984318040



  1. Turn the ignition switch to lock.
  2.  disconnect the negative () terminal cable from the battery, and wait at least for 90 seconds.
  3.  connect the instrument panel passenger airbag assy connector.
  4.  connect the negative () terminal cable to the battery, and wait at least for 2 seconds.
  5.  turn the ignition switch to on, and wait at least for 20 seconds.
  6.  clear the dtc stored in memory .
  7.  turn the ignition switch to lock, and wait at least for 20 seconds.
  8.  turn the ignition switch to on, and wait at least for 20 seconds.
  9.  check the dtc .

    Ok: dtc b0107/51 is not output.

Hint: codes other than code b0107/51 may be output at this time, but they are not relevant to this check.

4 Use simulation method to check

4 Use simulation method to check

Replace all srs components including the wire harness

Replace all srs components including the wire harness

Circuit description
The p squib circuit consists of the airbag sensor assy center and instrument panel passenger airbag assy. It causes the srs to deploy when the srs deployment conditions are satisfied. Dtc b010 ...

Short in p squib circuit (to b+)
Dtc b0108/52 short in p squib circuit (to b+) ...
