Toyota Corolla Repair Manual: Inspection procedure

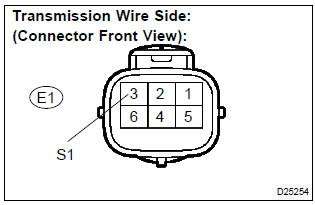

1 Inspect transmission wire(s1)

  1. Disconnect the transmission wire connector from the transaxle.
  2.  measure the resistance according to the value(s) in the table below.

Standard:

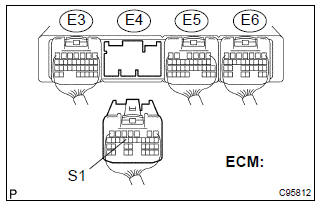

2 Check harness and connector(transmission wire  ecm)

2 Check harness and connector(transmission wire ecm)

  1. Connect the transmission connector to the transaxle.
  2.  disconnect the connector from the ecm.
  3.  measure the resistance according to the value(s) in the table below.

Standard:

Replace ecm

Replace ecm

3 Inspect shift solenoid valve(s1)

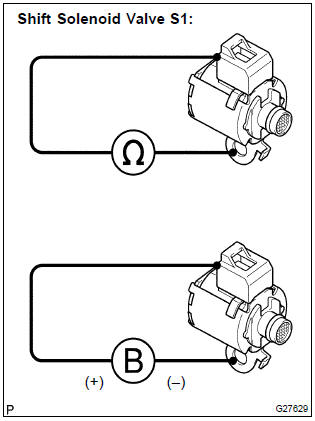

  1. Remove the shift solenoid valve s1.
  2.  measure the resistance according to the value(s) in the table below.

Standard:

  1. Connect the positive (+) battery lead to the solenoid connector terminal, and the negative () battery lead to the solenoid body for checking the solenoid valve operation.

Standard: the solenoid makes an operating noise.

Repair or replace transmission wire

Repair or replace transmission wire

Circuit description
Shifting from 1st to o/d is performed in combination with on and off of the shift solenoid valve s1 and s2 controlled by ecm. If an open or short circuit occurs in either of the solenoid valves, ...

Shift solenoid b control circuit low/high
Dtc p0976 shift solenoid b control circuit low (shift solenoid valve s2) Dtc p0977 shift solenoid b control circuit high (shift solenoid valve s2) ...
