Toyota Corolla Repair Manual: Inspection procedure

Hint

: start the inspection from step 1 in case of using the handheld tester and start from step 2 in case of not using the handheld tester.

1 Perform active test by handheld tester(abs motor relay)

  1. Check the operation sound of the abs motor individually when operaing it with the handheld tester.

    Ok: the operation sound of the abs motor should be heard.

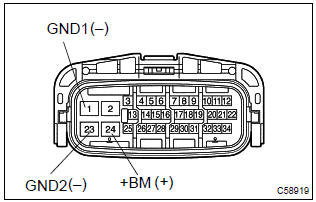

2 Inspect skid control ecu connector(+bm terminal voltage)

2 Inspect skid control ecu connector(+bm terminal voltage)

  1. Disconnect the skid control ecu connector.
  2.  measure the voltage between terminals +bm (24) and gnd (1, 23) of skid control ecu harness side connector.

    Voltage: 10 14 v

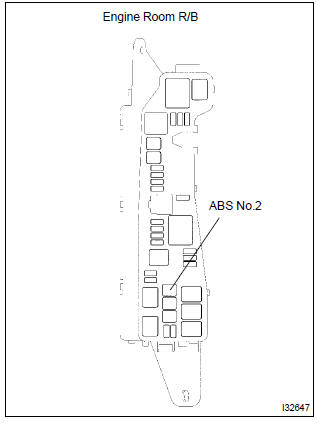

3 Inspect fuse(abs no.2 Fuse)

3 Inspect fuse(abs no.2 Fuse)

  1. Remove abs no.2 Fuse from the engine room r/b.
  2. check continuity of abs no.2 Fuse.

    Ok: continuity

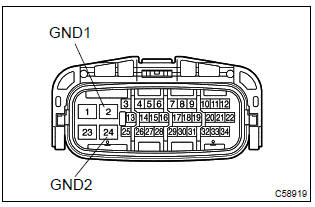

4 Inspect skid control ecu connector(gnd terminal continuity)

4 Inspect skid control ecu connector(gnd terminal continuity)

  1. Measure resistance between terminal gnd (1,23) of skid control ecu harness side connector and body ground.

    Resistance: 1 Ω or less

Check and replace brake actuator assy

Check and replace brake actuator assy

Circuit description
The abs motor relay supplies power to the abs pump motor. While the abs is activated, the ecu switches the motor relay on and operates the abs pump motor. Wiring diagram ...

Open/Short circuit in abs solenoid relay circuit
Dtc c0278/11 open circuit in abs solenoid relay circuit Dtc c0279/12 short circuit in abs solenoid relay circuit ...
