Toyota Corolla Repair Manual: Inspection procedure

Hint

:

1 Check other dtc output(in addition to misfire dtcs)

  1. Connect the hand–held tester or the obd ii scan tool to the dlc3.
  2.  turn the ignition switch on and push the hand–held tester or the obd ii scan tool main switch on.
  3.  select the item ”diagnosis / enhanced obd ii / dtc info / current codes”.
  4.  read the dtcs.

Result:

Hint:

Hint

: if any other codes besides p0300, p0301, p0302, p0303 or p0304 are output, perform the troubleshooting for those dtcs first.

2 Check wire harness, connector and vacuum hose in engine room

2 Check wire harness, connector and vacuum hose in engine room

  1. Check the connection conditions of the wire harness and connector.
  2. check the vacuum hose piping for disconnection and break.

3 Check connection of pcv hose

3 Check connection of pcv hose

4 Read value of hand–held tester or obd ii scan tool(number of

4 Read value of hand–held tester or obd ii scan tool(number of misfire)

  1. Connect the hand–held tester or the obd ii scan tool to the dlc3.
  2.  turn the ignition switch on and push the hand–held tester or the obd ii scan tool main switch on.
  3.  start the engine.
  4. select the item ”diagnosis / enhanced obd ii / data list / all / cyl#1 – cyl#4”.
  5.  read the number of misfire on the hand–held tester or the obd ii scan tool.

Hint

: when a misfire is not reproduced, be sure to branch below based on the stored dtc. Result:

5 Check spark plug and spark of misfiring cylinder

5 Check spark plug and spark of misfiring cylinder

  1. Remove the ignition coil assembly.
  2.  remove the spark plug.
  3.  check the spark plug type.

Recommended spark plug:

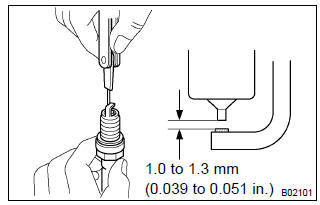

  1. Check the spark plug electrode gap.

Electrode gap: 1.0 To 1.3 Mm (0.039 To 0.051 In.) Notice

: if adjusting the gap of a new spark plug, bend only the base of the ground electrode. Do not touch the tip. Never attempt to adjust the gap on a used plug.

  1.  check the electrode for carbon deposits.
  2.  perform a spark test.

Caution

: absolutely disconnect the each injector connectors.

Notice

: do not crank the engine for more than 5 seconds at a time.

  1.  Install the spark plug to the ignition coil, and connect the ignition coil connector.
  2.  Disconnect the injector connector.
  3.  Ground the spark plug.
  4.  Check if spark occurs while the engine is being cranked.

Standard: spark jumps across electrode gap.

  1.  reinstall the spark plug.
  2.  reinstall the ignition coil assy.

6 Change normal spark plug and check spark of misfiring cylinder

6 Change normal spark plug and check spark of misfiring cylinder

  1. Change to the normal spark plug.
  2.  perform a spark test.

Caution

: absolutely disconnect each injector connector.

Notice

: do not crank the engine for more than 5 seconds at a time.

  1.  Install the spark plug to the ignition coil, and connect the ignition coil connector.
  2.  Disconnect the injector connector.
  3.  Ground the spark plug.
  4.  Check if spark occurs while the engine is being cranked.

    Standard: spark jumps across electrode gap.

7 Check harness and connector of misfiring cylinder(ignition coil –

7 Check harness and connector of misfiring cylinder(ignition coil – ecm)

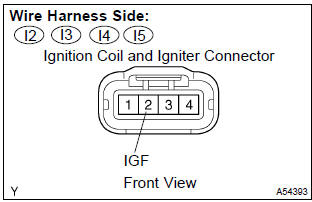

  1. Check the harness and connector between the ignition coil and ecm (igf terminal) connectors
  1.  disconnect the i2, i3, i4 or i5 ignition coil and igniter connector.

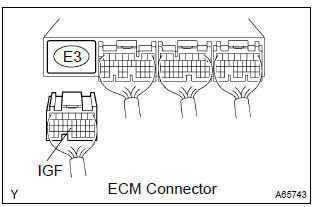

  2.  Disconnect the ecm e3 connector.
  3.  Check the resistance between the wire harness side connectors.

Standard (check for open):

Standard (check for short):

Standard (check for short):

  1. Reconnect the ecm connector.
  2.  Reconnect the ignition coil and igniter connector.

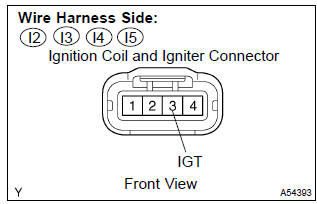

  1. check the harness and connector between the ignition coil and ecm (igt terminal) connectors
  1.  disconnect the i2, i3, i4 or i5 ignition coil and igniter connector.
  2.  Disconnect the ecm e3 connector.
  3.  Check the resistance between the wire harness side connectors.

Standard (check for open):

Standard (check for short):

Standard (check for short):

  1. Reconnect the ecm connector.
  2.  Reconnect the ignition coil and igniter connector.

Repair or replace harness or connector

Repair or replace harness or connector

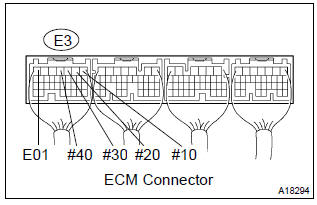

8 Inspect ecm terminal of misfiring cylinder(#10, #20, #30 or #40 voltage)

  1. Turn the ignition switch on.
  2.  measure the voltage between the terminals of the e3 ecm connector.

Standard:

9 Inspect fuel injector resistance of misfiring cylinder

9 Inspect fuel injector resistance of misfiring cylinder

10 Check harness and connector of misfiring cylinder(injector –

10 Check harness and connector of misfiring cylinder(injector – ecm, injector – ignition switch)

  1. Check the harness and connector between the injector connector and ecm connector.

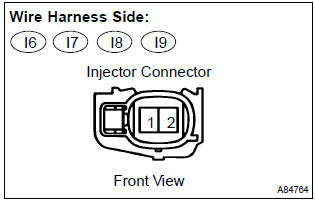

  1.  Disconnect the i6, i7, i8 or i9 injector connector.
  2.  Disconnect the e3 ecm connector.
  3.  Measure the resistance between the wire harness side connectors.

Standard (check for open):

Standard (check for short):

Standard (check for short):

  1. Reconnect the ecm connector.
  2.  Reconnect the iinjector connector.
  1. check the harness and connector between the injector connector and ignition switch connector.
  1.  Disconnect the i6, i7, i8 or i9 injector connector.

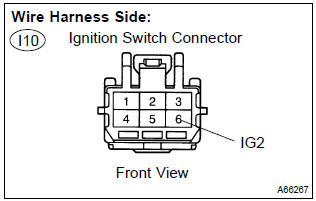

  2.  Disconnect the i10 ignition switch connector.
  3.  Measure the resistance between the wire harness side connectors.

Standard (check for open):

Standard (check for short):

Standard (check for short):

  1. Reconnect the ignition switch connector.
  2.  Reconnect the injector connector.

11 Inspect fuel injector injection and volume of misfiring cylinder

11 Inspect fuel injector injection and volume of misfiring cylinder

12 Check cylinder compression pressure of misfiring cylinder

12 Check cylinder compression pressure of misfiring cylinder

13 Check valve clearance of misfiring cylinder

13 Check valve clearance of misfiring cylinder

14 Switch step by number of misfire cylinder(refer result of step 4)

14 Switch step by number of misfire cylinder(refer result of step 4)

Hint

:

15 Check valve timing(check for looseness or a jumped tooth of the

15 Check valve timing(check for looseness or a jumped tooth of the timing chain)

16 Check fuel pressure

16 Check fuel pressure

17 Read value of hand–held tester or obd ii scan tool(intake air

17 Read value of hand–held tester or obd ii scan tool(intake air temperature and mass air flow rate)

  1. Connect the hand–held tester or the obd ii scan tool to the dlc3.
  2.  turn the ignition switch on.
  3.  check the intake air temperature.
  1.  Select the item ”diagnosis / enhanced obd ii / data list / all / intake air” and read its value displayed on the hand–held tester or the obd ii scan tool.

    Temperature: equivalent to ambient temperature

  1.  check the air flow rate.
  1.  Select the item ”diagnosis / enhanced obd ii / data list / all / maf” and read its value displayed on the hand–held tester or the obd ii scan tool.

    Standard:

18 Inspect engine coolant temperature sensor(resistance)

18 Inspect engine coolant temperature sensor(resistance)

  1. Remove the engine coolant temperature sensor.

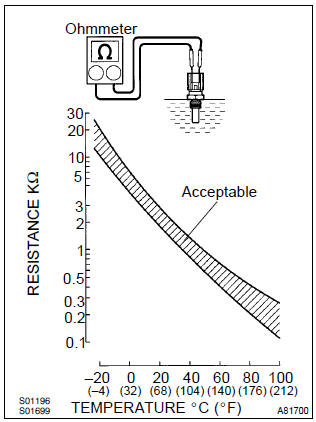

  2.  measure the resistance between the terminals of the engine coolant temperature sensor.

Standard:

Notice:

Notice

: if you checking the engine coolant temperature sensor in water, be careful not to allow water to go into the terminals.

After checking, dry the sensor.

Hint

: alternate procedure: connect an ohmmeter to the installed engine coolant temperature sensor and read the resistance. Use an infrared thermometer to measure the engine temperature in the immediate vicinity of the sensor. Compare these values to the resistance/temperature graph. Change the engine temperature (warm up or allow to cool down) and repeat the test.

19 Switch step by number of misfire cylinder(refer result of step 4)

19 Switch step by number of misfire cylinder(refer result of step 4)

Hint

:

Check for intermittent problems

Check for intermittent problems
