Toyota Corolla Owners Manual: Gauges and meters (drive monitor display)
The displayed content may differ depending on the type of meter.

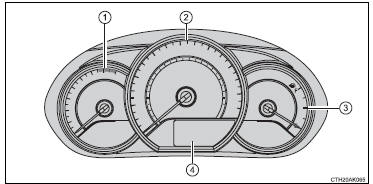

1 Tachometer
Displays the engine speed in revolutions per minute.
2 Speedometer
3 Fuel gauge
4 Drive monitor display
The drive monitor display presents the driver with a variety of drivingrelated data
including the current outside air temperature.
- Drive monitor display
- Instrument panel light control
- Trip information
- Eco Driving Indicator Light customization (except vehicles with a manual transmission)
Indicators
The indicators inform the driver of the operating state of the vehicle’s various
systems.
*1: Vehicles without a smart key system:
These lights turn on when the engine switch is turned to the “O ...
Drive monitor display
1 Engine coolant temperature gauge
Displays the engine coolant temperature.
2 Eco Driving Indicator Zone Display*
3 Outside temperature display
4 Shift position and gear position indicator* (, 1 ...
