Toyota Corolla (E120): Front suspension

Service data

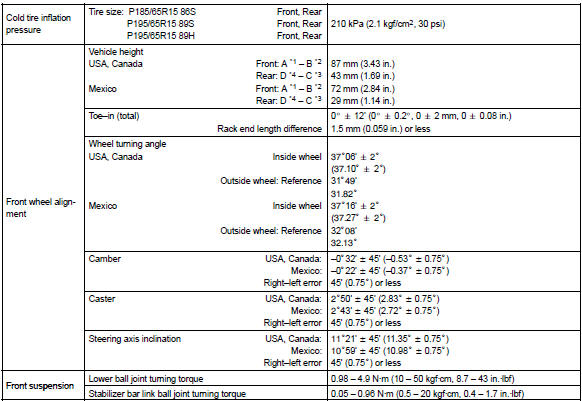

*1: Ground clearance of front wheel center

*1: Ground clearance of front wheel center *2: ground clearance of lower suspension arm front bolt center *3: ground clearance of axle beam set bolt center *4: ground clearance of rear wheel center

Torque specification

Rear suspension
