Toyota Corolla (E120): Front axle lh hub bolt

Replacement

Hint

: components:

1. Remove front wheel

2. Separate front disc brake caliper assy lh

3. Remove front disc

4. Remove front axle lh hub bolt

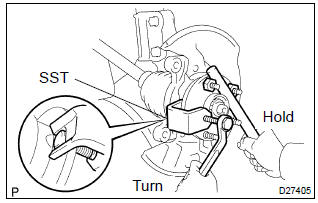

  1. Using sst and a hammer handle or an equivalent, remove the lh hub bolt.

    Sst 09628–10011

5. Install front axle lh hub bolt

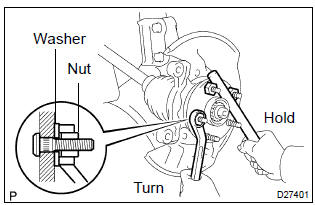

  1. Install a washer and nut to a new lh hub bolt as shown in the illustllation.
  2. using a hammer handle or an equivalent to hold the hub sub–assy lh, install the lh hub bolt by tightening the nut.

6. Install front disc

7. Install front disc brake caliper assy lh

8. Install front wheel

torque: 103 nvm (1,050 Kgf·cm, 76 ft·lbf)
