Toyota Corolla (E120): Fan and generator v belt
Replacement
1. Remove engine under cover rh
2. Remove fan and generator v belt

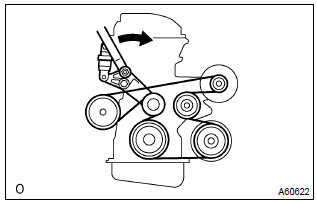

- Turn the v–ribbed belt tensioner slowly clockwise and loosen it. Then, remove the fan and generator v belt and put back the v–ribbed belt tensioner little by little and fix it quietly.
