Toyota Corolla Repair Manual: Fail–safe chart

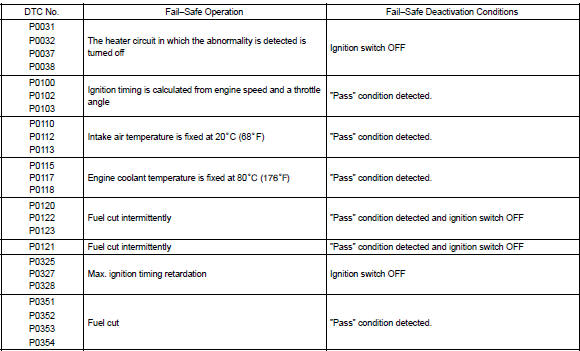

If any of the following codes is recorded, the ecm enters the fail–safe mode.
Check for intermittent problems
Hand–held tester only:
by putting the vehicle’s ecm in the check mode, the 1 trip detection logic is possible instead of the 2 trip detection logic, and the sensitivity to detect faults is increased. This makes it easier to detect intermittent problems.
- Clear the dtcs .
- set the check mode .
- perform a simulation test .
- check the connector and terminal .
- wiggle the harness and connector
Diagnostic trouble code chart
Hint:
as for the vehicle for mexico, refer to repair manual 2003 corolla (pub. No.
Rm938u).
Parameters listed in the chart may not be exactly the same as your readings due
to the type of instr ...
Problem symptoms table
When the malfunction code is not confirmed in the diagnostic trouble code
check and the problem still can
not be confirmed in the basic inspection, proceed to this problem symptoms
tables and tro ...
