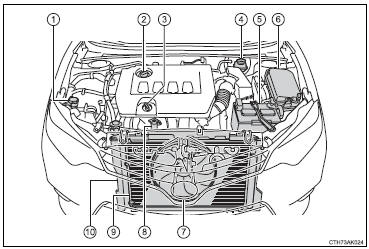

Toyota Corolla (E170): Engine compartment
1 Washer fluid tank
2 Engine oil filler cap
3 Engine oil level dipstick
4 Brake fluid reservoir
5 Battery
6 Fuse box
7 Electric cooling fan
8 Engine coolant reservoir
9 Condenser
10 Radiator
