Toyota Corolla (E120) 2002–2008 Repair Manual / Diagnostics / Cruise control system / Cruise main indicator light circuit / Circuit description
Toyota Corolla (E120): Circuit description
When the cruise control main switch assy button is turned to on, cruise main indicator light comes on.

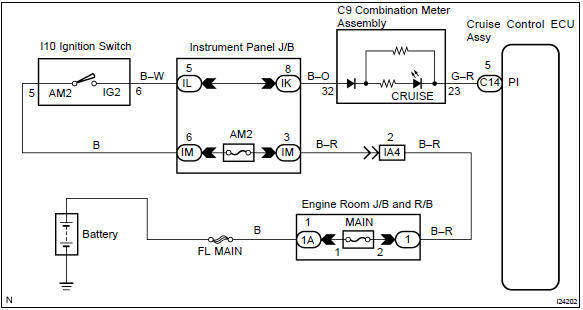

Wiring diagram
