Toyota Corolla Repair Manual: Circuit description
The key unlock warning switch comes on when the ignition key is inserted in the key cylinder and goes off when the ignition key is removed.

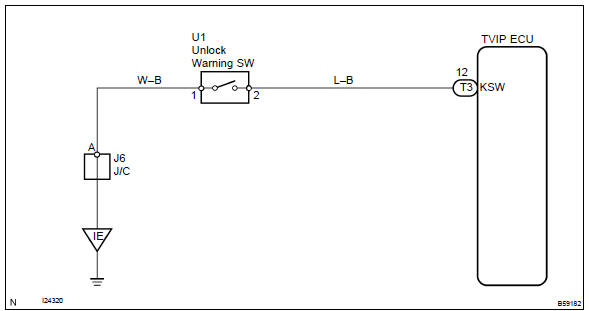

Wiring diagram
Inspection procedure
1 Check un–lock warning switch assy
Disconnect the key unlock warning switch connector.
check the continuity between the terminals of the key unlock
warning switch connector, as show ...
