Toyota Corolla Repair Manual: Circuit description

The srs warning light is located on the combination meter.

When the srs is normal, the srs warning light lights up for approx. 6 Seconds after the ignition switch is turned from the lock position to on position, and then turns off automatically.

If there is a malfunction in the srs, the srs warning light lights up to inform the driver of the abnormality.

When terminals tc and cg of the dlc3 are connected, the dtc is displayed by blinking the srs warning light.

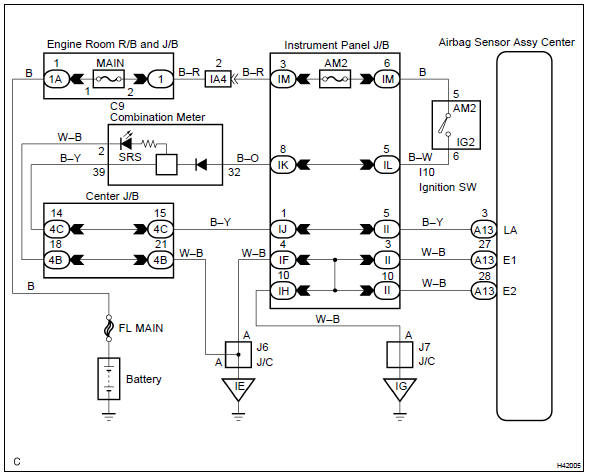

Wiring diagram

Inspection procedure

Srs warning light circuit malfunction (always light up, when dtc is not output)
...

Inspection procedure
1 Check connector Disconnect the negative () terminal cable from the battery, and wait at least for 90 seconds.  check the connection of the combination meter connector and the airba ...
