Toyota Corolla (E120) 2002–2008 Repair Manual / Diagnostics / Supplemental restraint system / Short in p squib (2nd step) circuit / Circuit description
Toyota Corolla (E120): Circuit description
The p squib (2nd step) circuit consists of the airbag sensor assy center and instrument panel passenger airbag assy.
It causes the srs to deploy when the srs deployment conditions are satisfied.
Dtc b1185/57 is recorded when a short is detected in the p squib (2nd step) circuit.

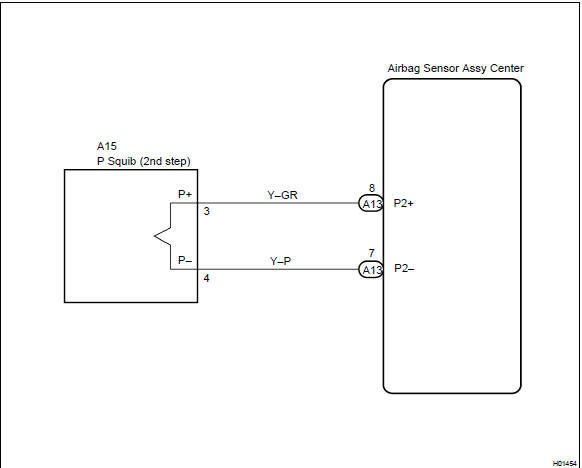

Wiring diagram
