Toyota Corolla (E120) 2002–2008 Repair Manual / Diagnostics / Supplemental restraint system / Front airbag sensor (rh)
malfunction / Circuit description
Toyota Corolla (E120): Circuit description
The airbag front rh sensor circuit consists of the airbag sensor assy center and airbag front rh sensor.
Dtc b1156/b1157/15 is recorded when a malfunction is detected in the airbag front rh sensor circuit.

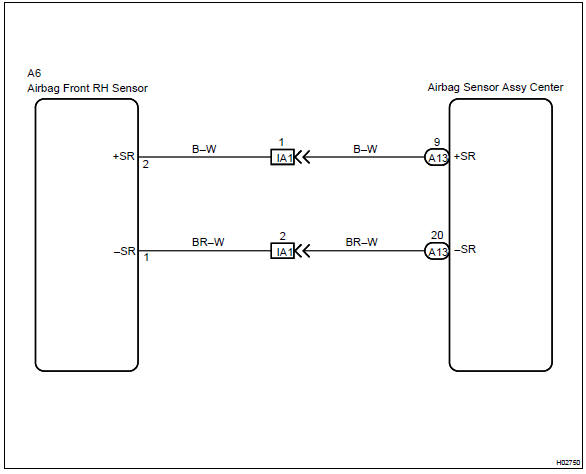

Wiring diagram
