Toyota Corolla (E120): Circuit description

The seat belt buckle switch (lh) circuit consists of the airbag sensor assy center and front seat inner belt assy (lh).

Dtc b0126/b0127/27 is recorded when a malfunction is detected in the seat belt buckle switch (lh) circuit.

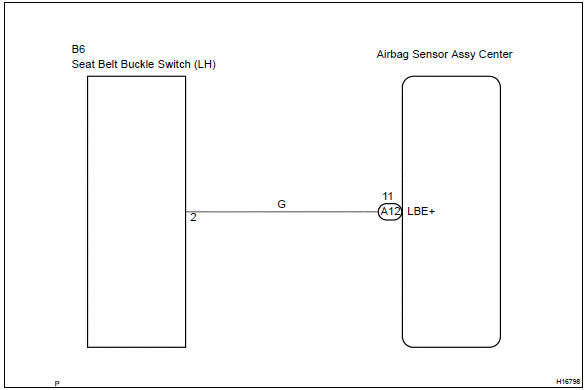

Wiring diagram

Wiring diagram

Inspection procedure
