Toyota Corolla Repair Manual: Circuit description

This relay supplies power to each abs solenoid. After the ignition switch is turned on, if the initial check is ok, the relay goes on

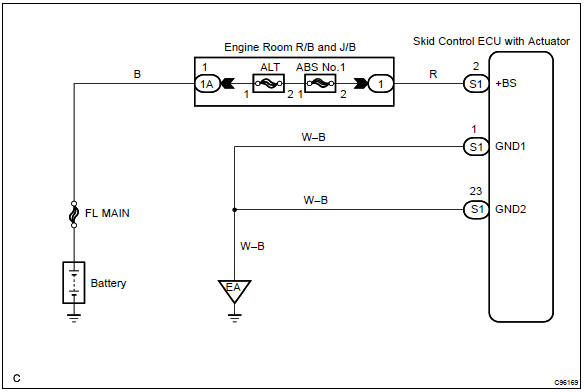

Wiring diagram

Wiring diagram

Inspection procedure

Open/Short circuit in abs solenoid relay circuit
Dtc c0278/11 open circuit in abs solenoid relay circuit Dtc c0279/12 short circuit in abs solenoid relay circuit ...

Inspection procedure
1 Inspect skid control ecu connector(+bs terminal voltage) Disconnect the skid control ecu connector.  measure the voltage between terminals +bs (2) and gnd (1, 23) of skid control ec ...
