Toyota Corolla Repair Manual: Circuit description
Refer to dtc c0200/31, c0205/32, c1235/35, c1236/36
Hint
: Dtc no. C0210/33, c1238/38 is for the right rear speed sensor.
Dtc no. C0215/34, c1239/39 is for the left rear speed sensor. Wiring diagram

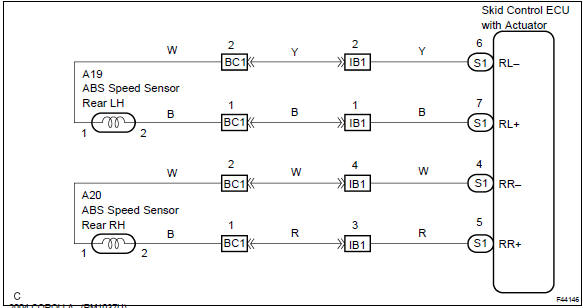

Right/Left rear speed sensor circuit

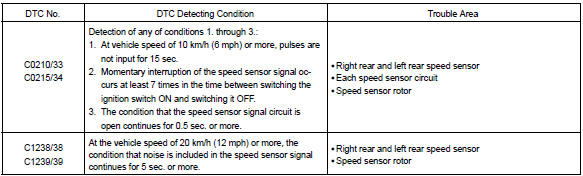

Dtc c0210/33 right rear speed sensor circuit
Dtc c0215/34 left rear speed sensor circuit
Dtc c1238/38 foreign matter is attached on tip of
right rear sensor
Dtc c1239/39 foreign matter is attached ...
Inspection procedure
Hint:
start the inspection from step 1 in case of using the hand–held tester and start
from step 2 in case of not
using the hand–held tester.
1 Read value of hand–held tester(skid control sensor) ...
