Toyota Corolla (E120): Brake

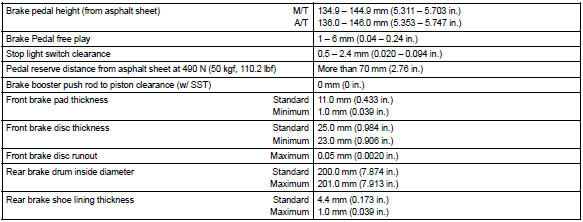

Service data

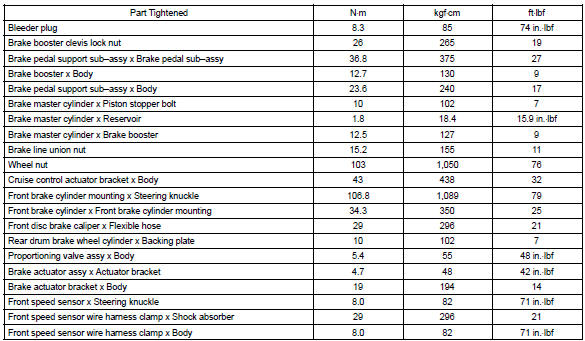

Torque specification

Parking brake
Service data

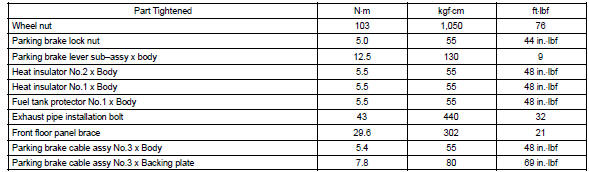

Torque specification

Other materials:
Problem symptoms table
If a normal code is displayed during the dtc check but the problem still
occurs, check the circuits for each
problem symptom in the order given in the table below and proceed to the
relevant troubleshooting page.
Notice:
when replacing skid control ecu, sensor or etc., Turn the ignition swi ...
Symptom simulation
Hint:
the most difficult case in troubleshooting is when no symptoms occurs. In such
cases, a thorough customer
problem analysis must be carried out. Then the same or similar conditions and
environment in which the
problem occurred in the customer’s vehicle should be simulated. No matter ho ...
Adjustment
1. Remove rear wheel
2. Adjust rear drum brake shoe clearance
3. Install rear wheel
torque: 103 nvm (1,050 Kgf·cm, 76 ft·lbf)
4. Inspect parking brake lever travel
pull the parking brake lever to the fully applied position, and
count the number of clicks.
Parking brake lever tr ...
