Toyota Corolla (E120): Brake

Preparation

Sst

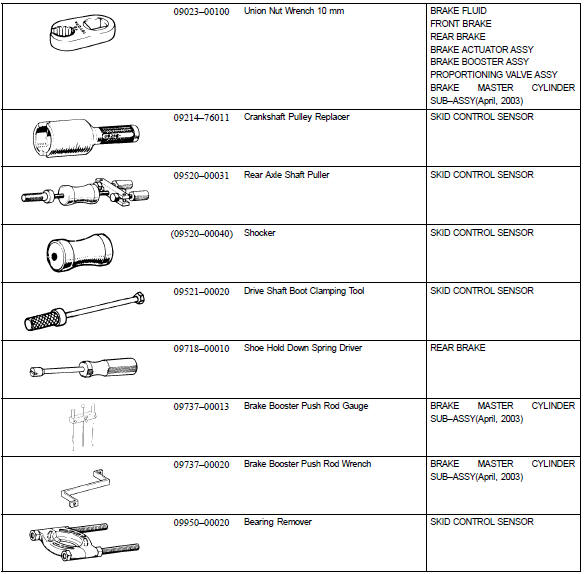

Recomended tools

Recomended tools

Equipment

Equipment

Lubricant

Lubricant

Parking brake

    Share this page:

    Other materials:

    Inspection procedure
    Hint: read freeze frame data using the hand-held tester or the obd ii scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the ...

    Monitor description
    While the engine is being cranked, the battery positive voltage is applied to terminal sta of the ecm. If the ecm detects the starter control signal (sta) while the vehicle is driving, it will conclude that there is a fault in the starter control circuit. The ecm will turn on the mil and a d ...

    Inspection procedure
    1 Inspect dlc3 terminal voltage Turn the ignition switch to on.  measure voltage between terminals 13 (tc) and 4 (cg) of dlc3. Ok: voltage: 10 – 16 v 2 Check harness and connector(between cruise control ecu assy and dlc3) Check for open and short circuit in harness ...
