Toyota Corolla (E120) 2002–2008 Repair Manual / Service specifications / Automatic transmission / transaxle
Toyota Corolla (E120): Automatic transmission / transaxle

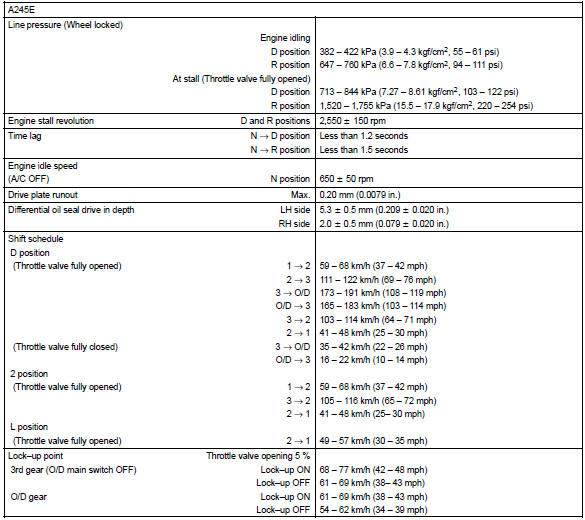

Service data

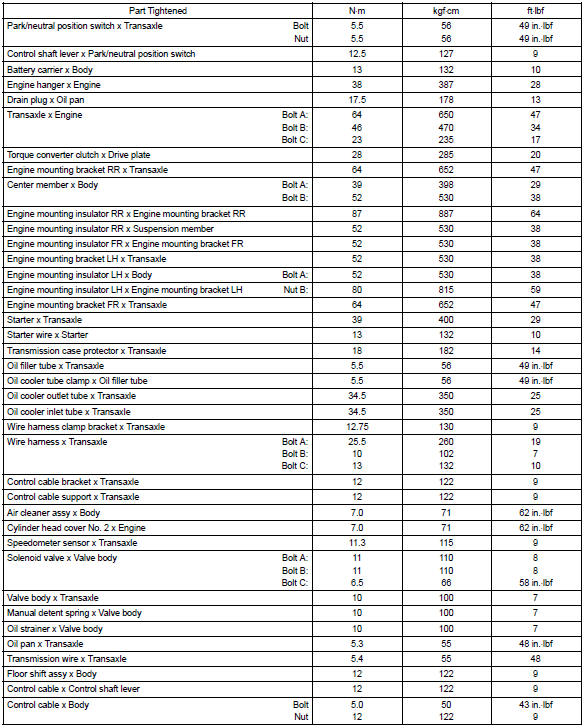

Torque specification
Other materials:
Inspection procedure
Hint:
start the inspection from step 1 in case of using the hand–held tester and start
from step 2 in case of not
using hand–held tester.
1 Inspect brake actuator assy
Select the datalist mode on the hand–held tester.
check the operation sound of the abs pump motor when operat ...
Circuit description
In the diagram below, when the engine is cranked, current flows from terminal
st2 of the ignition switch to
the starter relay coil and also current flows to terminal sta of the ecm (sta
signal).
When the sta signal and ne signal are input to the ecm, tr is turned on, current
flows to the c ...
Key confinement prevention function does not work
properly (unlock warning switch circuit)
Circuit description
The unlock warning switch turns on when the key is inserted in the ignition
key cylinder and the door courtesy
switch turns on when the driver’s door is opened, and the integration relay
monitors both switches conditions.
According to these switches conditions, the int ...
