Toyota Corolla (E120) 2002–2008 Repair Manual / Preparation / Automatic transmission / trans
Toyota Corolla (E120): Automatic transmission / trans
Preparation

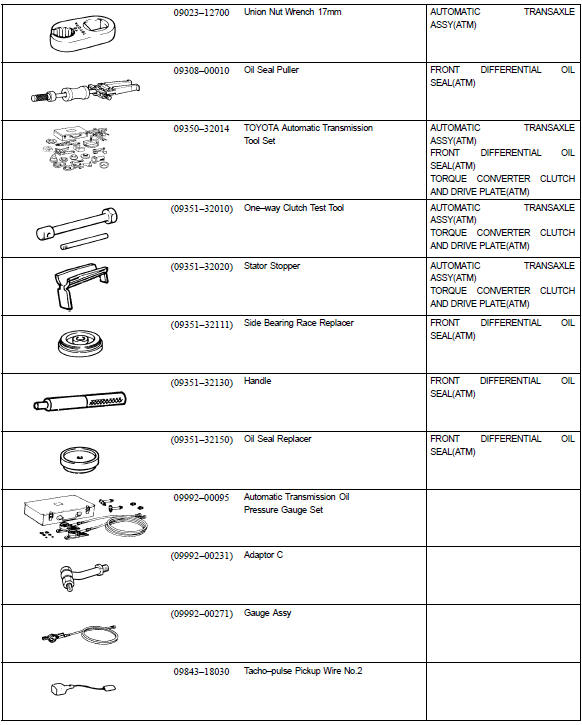

Sst

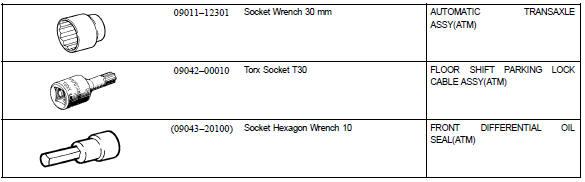

Recomended tools

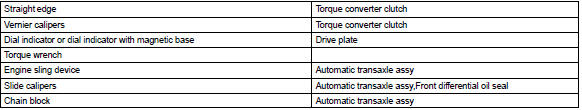

Equipment
Lubricant
Ssm (special service materials)
Other materials:
Ecu power source circuit
Circuit description
This circuit provides power to operate the tvip ecu.
Wiring diagram
Inspection procedure
1 Check fuse (ecu–b)
Remove the fuse from the instrument panel j/b.
check the continuity of the fuse.
Standard: continuity
2 Check tvip ecu
Disconnect ...
Inspection procedure
1 Check voltage at ig2 of airbag sensor assy center
Disconnect the negative (–) terminal cable from the battery,
and wait at least for 90 seconds.
disconnect the connector of the airbag sensor assy center.
connect the negative (–) terminal cable to the battery,
and wa ...
