Toyota Corolla Repair Manual: Adjustment
1. Remove rear wheel
2. Adjust rear drum brake shoe clearance
3. Install rear wheel
torque: 103 nvm (1,050 Kgf·cm, 76 ft·lbf)
4. Inspect parking brake lever travel
- pull the parking brake lever to the fully applied position, and
count the number of clicks.
Parking brake lever travel: 6 – 9 clicks at 196 n (20 kgf, 44.1 Lbf)

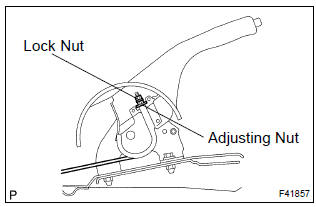

5. Adjust parking brake lever travel
- remove the rear console box sub–assy .
- Loosen the lock nut and turn the adjusting nut until the lever travel turns correct.
- tighten the lock nut.
Torque: 5.0 Nvm (55 Kgf·cm, 44 in.Vlbf)
- install the rear console box sub–assy.
Problem symptoms table
Use the table below to help you find the cause of the problem. The numbers
indicate the probability of the
problems in descending order. Check each part in order. If necessary, replace
these part ...
